The Wireless iMatrix IoT Wi-Fi Gateway automatically scans and connects iMatrix wireless sensors and sends data to the Cloud. Compact USB dongle with dual Wi-Fi bands and BLE. Ideal for climate-sensitive environments — 24-hour monitoring, real-time alerts, logs, and reports.
Legacy-compatible band for older routers and extended-range deployments.
Modern high-throughput band. Dual-band client auto-selects the better signal.
Scans and connects iMatrix BLE sensors automatically. No pairing steps.
Powered via USB 5V / 800 mA. Plug into any host — PC, Raspberry Pi, small appliance.
All sensor data encrypted end-to-end from device to iMatrix Cloud.

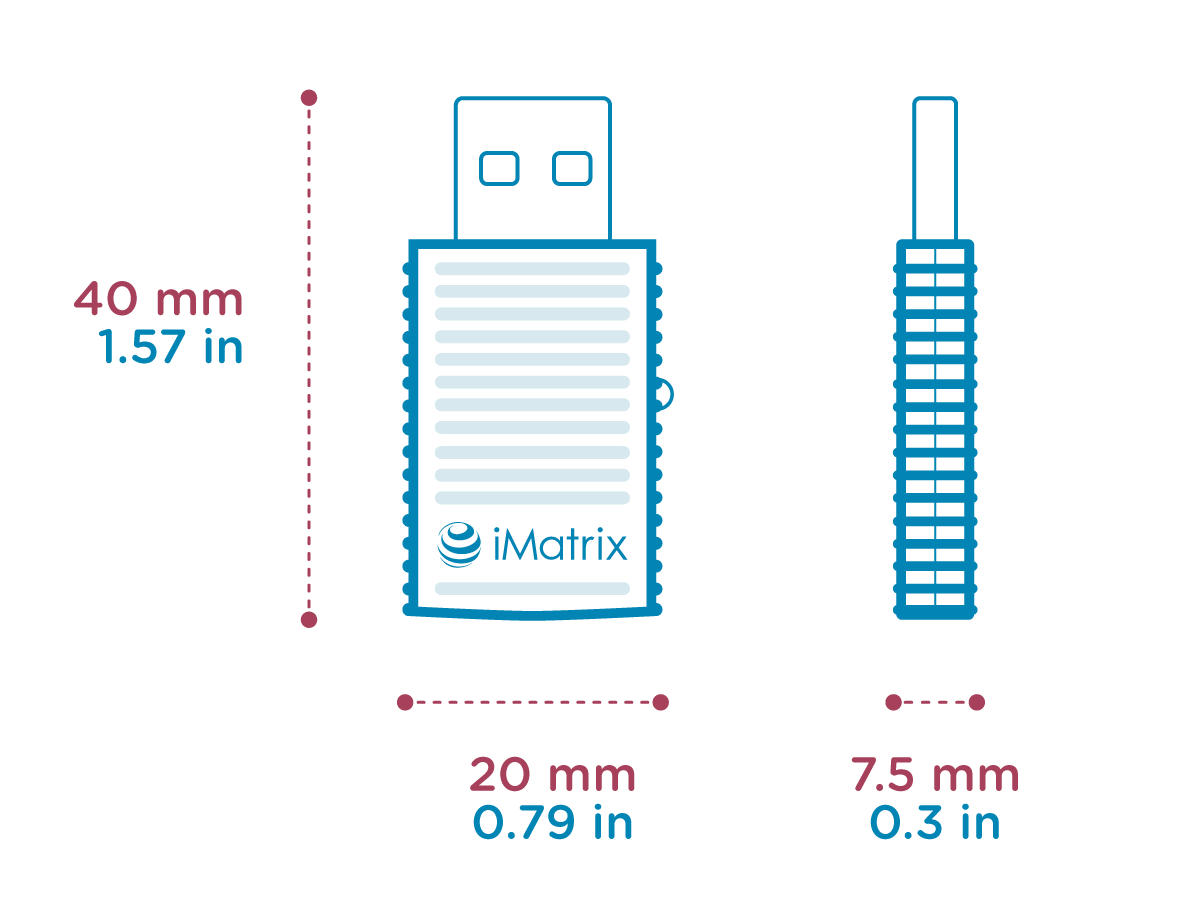

40 × 20 × 7.5 mm. 4.6 grams. Easy to deploy in any environment.
| Device type | Gateway |
|---|---|
| Supported Wi-Fi bands | 2.4 GHz and 5.0 GHz Wi-Fi |
| Connections | Bluetooth 5.0 |
| Dimensions | 1.57 × 0.79 × 0.3 in (40 × 20 × 7.5 mm) |
| Weight | 0.16 oz (4.6 g) |
| Host interface | USB HID |
| Input voltage | 5 V, 800 mA |
| Features | Connects to a/b/g/n access points · Single dual-band (2.4 / 5 GHz) combo antenna and radio shared by Wi-Fi and BLE · BLE 5.0 support |
A single Micro Gateway can aggregate readings from dozens of Neo and Sentry sensors and push them to iMatrix Cloud over Wi-Fi.
