NEO-1 is a sensor and a data logger that wirelessly monitors temperature, humidity, VPD, heat index, and dew points for up to 3+ years on battery power. The ideal solution for climate-sensitive environments — 24/7 monitoring, real-time alerts, logs, and reports.
-40°F to 158°F. ±0.2°C accuracy across the 0–90°C range.
0% to 100% relative humidity. ±3% typical accuracy.
Derived "feels-like" temperature combining air temp and RH.
Condensation-risk forecasting for HVAC and storage applications.
Vapor pressure deficit — critical for greenhouses and horticulture.
Low-energy radio with 328 ft (100 m) broadcasting range, 4 dBm transmit power.
Upgradable to iMatrix Massive Mesh for networks of hundreds or thousands of sensors.
Over-the-air firmware updates via the Micro Gateway — no physical handling required.
| Device type | Wireless temperature and humidity sensor + data logger |
|---|---|
| Measures | Temperature, humidity, heat index, dew point, air VPD |
| Temperature range | -40°F to 158°F (-40°C to 70°C) |
| Temp accuracy | ±0.2°C @ 0–90°C typical |
| Humidity range | 0% to 100% |
| Humidity accuracy | ±3% typical |

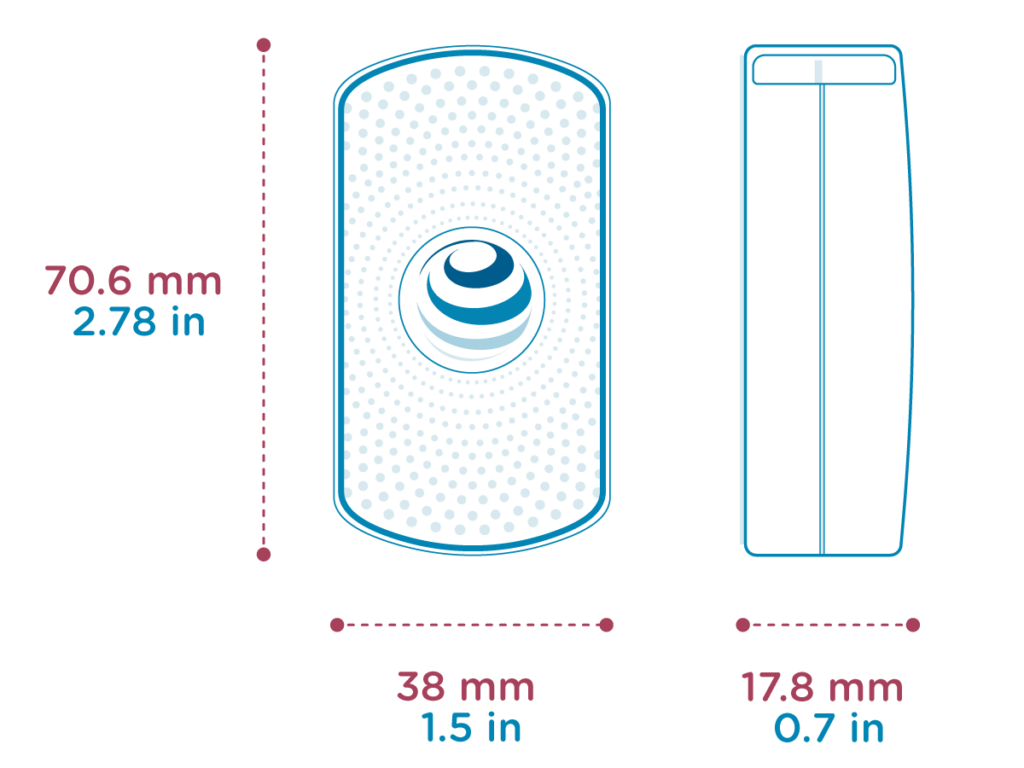

| Dimensions | 2.78 × 1.5 × 0.7 in (70.6 × 38 × 17.8 mm) |
| Weight | 1.34 oz (38 g) |
| Waterproof rating | IP66 (waterproof, dust proof) |
| Network type | Bluetooth Low Energy |
| BLE certification | Bluetooth Cert (EPL 0.3.2019) |
| Broadcasting range | 328 ft (100 m) |
| Tx Power | 4 dBm |
| On-device storage | 100,000 readings |
| Power | 2 × high-performance lithium AAA (1100 mAh) |
| Battery life | Up to 3+ years |
| Features | BLE-based · temp + RH readings stored and uploaded · 6 months of on-device logging · Massive-Mesh upgradable |
| Certifications | CE · FCC · EMC |
We recommend the iMatrix Micro Gateway to automatically scan, connect, and send NEO sensor data to the cloud for worldwide access (sold separately). For massive networks, upgrade to our proprietary mesh and deploy the Series-1 Gateway.
The reading cadence is adjustable in iMatrix Cloud. More frequent readings mean shorter battery life — the default balance targets 3+ years.
0 – 100% RH, with some accuracy loss as you approach 100%. For condensing environments pair with the Neo-1P external probe.
Yes — log in to your iMatrix Cloud account online. Graphs and textual records for every sensor, exportable for audits.
-40°C to 70°C (-40°F to 158°F). For in-core cryogenic or liquid immersion, see the Neo-1P probe variant.
