Wireless Temperature & Humidity Sensor with Display and Probe

NEO-1DP is a sensor and data logger with a display that wirelessly monitors temperature, humidity, VPD, heat index, and dew point for up to 3+ years on battery power. The base unit mounts outside freezers or harsh environments — protecting the screen and battery — while the probe reaches the monitored space.

$49.99

Single unit

Buy → NIST Variant

iMatrix NEO-1DP sensor with display and external probe

Features

Display + probe + ambient humidity. The flagship Neo.

🌡

Probe Temperature

1.38 in (3.5 cm) probe on 39 in (99 cm) cable. Base stays dry outside the cold chamber.

💧

Ambient Humidity

0–100% RH at the base unit — track both cargo-core temperature AND air conditions.

📺

E-ink Display

Live readings visible in situ, no phone required for spot checks.

📡

Bluetooth 5.2

100 m broadcasting range. Cert EPL 0.3.2019. 4 dBm Tx power.

🕸

Mesh Upgradable

Upgrade to Massive Mesh for networks of hundreds or thousands of sensors.

💾

100,000+ Readings

On-device storage with external flash. 6 months of data retention.

Specifications

NEO-1DP datasheet.

Device type	Temperature and humidity sensor with external probe and display
Measures	Temperature, humidity, heat index, dew point, air VPD
Temperature range	-4°F to 140°F (-25°C to 60°C)
Temp accuracy	±0.2°C @ 0–90°C typical
Humidity range	0% to 100%

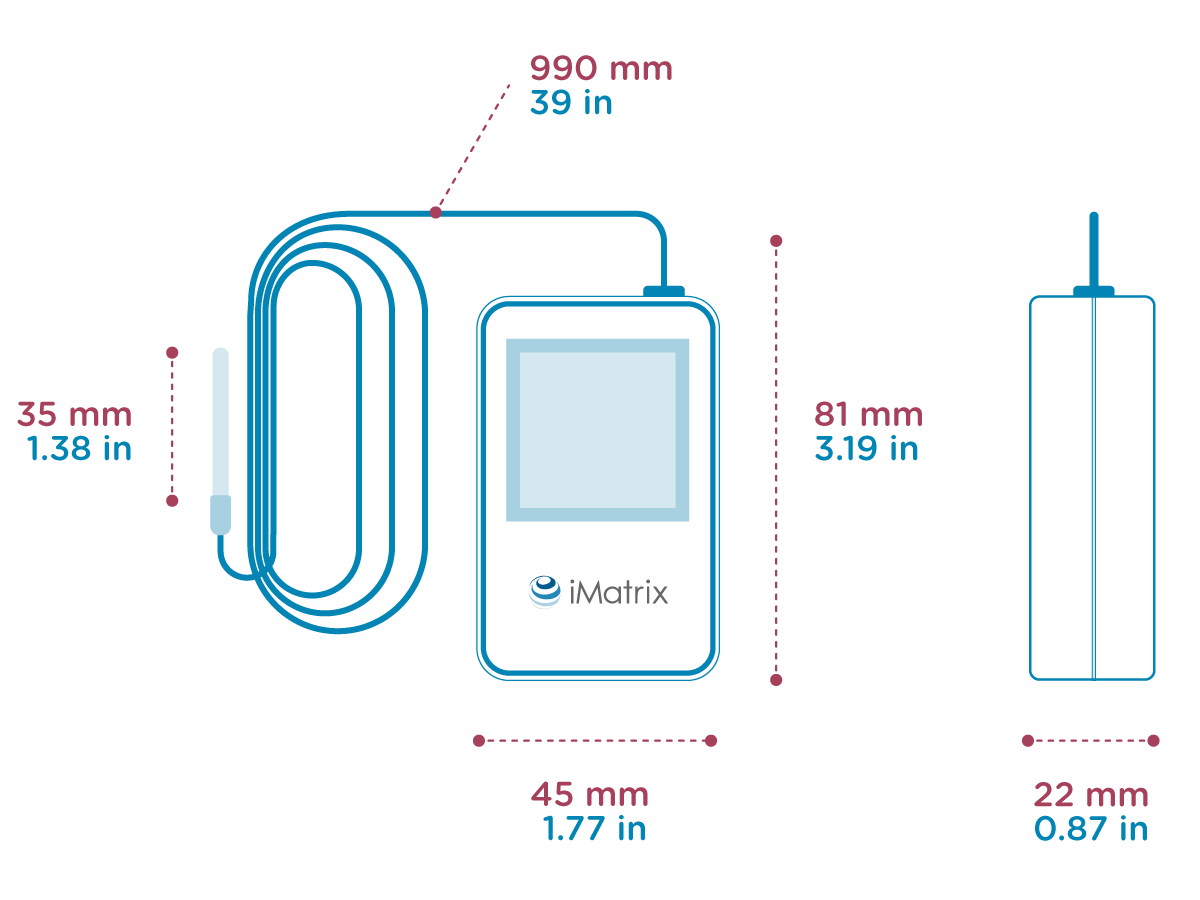

Body dimensions	3.19 × 1.77 × 0.87 in (81 × 45 × 22 mm)
Probe length	1.38 in (3.5 cm)
Probe cable length	39 in (99 cm)
Weight	2.13 oz (60.5 g)
Waterproof rating	IP66 (waterproof, dust proof)
Network type	Bluetooth Low Energy
BLE certification	Bluetooth Cert (EPL 0.3.2019)
Broadcasting range	328 ft (100 m)
Tx Power	4 dBm
On-device storage	100,000 readings + external flash
Battery	1200 mAh (ER14250)
Battery life	Up to 3+ years
Display	E-ink display screen
Features	BLE-based · measures, stores, uploads · 6 months on-device logging · Massive-Mesh upgradable
Certifications	CE · FCC

Use Cases

Where NEO-1DP deploys.

❄

Cold Chain

Ultra-low-temp freezers where the base unit must stay outside to preserve battery and display.

💉

Pharmaceutical Products

Vaccine fridges with in-core probe temperature plus ambient humidity tracking.

🧀

Cheese Grottos & Caves

Aging caves and grottos where humidity and probe temperature both matter for the final product.

Need Regulatory Sign-off?

The NIST-traceable variant is a drop-in upgrade.

Same sensor, NIST-certified calibration certificate for pharmaceutical, food-service, and laboratory compliance.

NEO-1DP NIST →
